Printing Photo from Memory Card onto Disc Label

You can print a photograph saved on a memory card onto the disc label of the printable disc.

Important

• You cannot print on 3.15 in. (8 cm) printable discs.

• Do not mount the multi-purpose tray until the message prompting you to load the printable disc appears. Doing so can damage the printer.

1. Check that printer is turned on.

2. Select Print on the HOME screen.

   • Using Touch Screen

3. Select Print from memory card.

   The memory card print menus are displayed.

4. Select Print photos on disc label.

5. Insert memory card into card slot.

   Note

   • When you insert the memory card before you displays the memory card print menus, the photo selection screen in Select photo print is displayed.

   • If no printable photo data is saved on the memory card, Saved data is not of a supported type. is displayed on the touch screen.

   • If more than 2,000 photo data are saved on the memory card, the photo data is split by group per 2,000 photos in reverse chronological order (date last modified) automatically. Check the message displayed on the touch screen and select OK.

6. Check message and select OK.

   The print area setting screen is displayed.

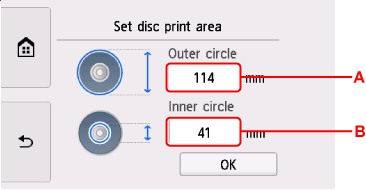

7. Specify print area and select OK.



   • A: Specify the outer circle.

   • B: Specify the inner circle.

   Note

   • Measure the outer and inner diameters of the printing surface of the printable disc and make sure you set a value smaller than the measured value for the outer diameter, and a value larger than the measured value for the inner diameter.

   • For information on printable discs, contact their manufacturers.

8. Specify the amount of ink.

   If the print result is blurry, select Bleed-proof. Blurring may be reduced by printing with less ink.

9. Select a photo you want to print.

   Note

   • Other Options

     • Using Useful Display Functions

10. Specify print area with trimming and select OK.



    • C: Drag to position the trimming frame.

    • D: Drag to set the trimming frame size.

11. Check message and tap Color.

12. Open operation panel until horizontal.

13. Follow on-screen instructions to set printable disc.

    Note

    • You can see the procedure to set the printable disc by selecting How to set.

14. Select OK.

    The printer starts printing.

    Note

    • After printing, allow the printing surface of the disc to dry naturally. Do not use hairdryers or expose the disc to direct sunlight to dry the ink. Do not touch the printing surface until the ink has dried.

    • If printing is misaligned, adjust the printing position using Adjust disc print area in Print settings under Printer settings.

      • Print settings
